LENKENG LKV331 3D 3x1 HDMI Switch ( HDMI 3 Input & 1 out put ) with remote control
Share your HDMI sources with a single HD monitor. This 3×1 HDMI Switch allows you to switch between 3 HDMI sources (set top box, DVD players, video game stations, etc.) and your HD monitor easily. This switch passes both digital and audio signals through the HDMI ports! It is powered from HDMI cable and ensures high-quality signal transmission as well. It supports full HD 1080p and 1080P@24Hz 3D source.
Input Video Signal
0.5 -1.0 volts p-p
Input DDC Signal
5 volts p-p (TTL)
Max Single Link Range
1920 x 1080
HDMI Resolutions
480p/576p/720p/1080i/1080P;
3D 1080P / 24HZ
DVI Resolutions
480p/576p/720p/1080i/1080p
XUVGA
Up to 1920×1200
HD Video Format
Deep Color
Bandwidth
Up to 225MHz
Power supply
DC 5V@1A
Max. Power
1.0W
TMDS Voltage
1Vp-p
Resistance
75Ω
Max. Transmission length
10 meters (powered from HDMI cable)
15 meters (powered from power supply)

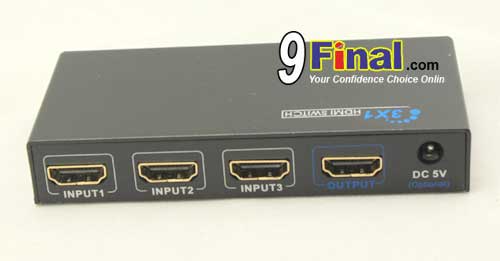

Interface Specification:-
(1)ÿConnect HDMI Sources
(2) Connect HDMI Display
(3)ÿConnect DC 5V@1A power supply (optional)
(4)ÿIR Receiver
(5)ÿPower LED
(6)ÿLED of Input Port
(7)ÿInput switch button
